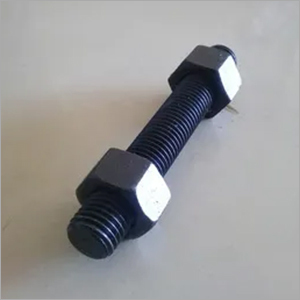

GR B7 STUD

GR B7 STUD
GR B7 STUD
Product Code : SA 193 GR B7
Brand Name : RAHUL FASTENERS & FITTINGS
Product Description

Sold in Individual Sets or Box Quantities

Studs: Grade B7

Full Threaded Rod Stud Bolts
Chamfered Flat Faced Ends
Manufactured from Chromium-Molybdenum Ferritic Alloy Steel
Tensile Strength: 125 KSI Min.
Hardness 35 HRC Max.

Nuts:Grade 2H

Heavy Hex
Single-Chamfered with Bottom Washer Face
Manufactured from Carbon Steel
Rockwell Hardness: C24 to C38

Threads:
1” Diameter & Smaller - Unified Inch Coarse Series (UNC), Class 2A
1-1/8” Diameter & Larger - Unified Inch 8 Thread Series (UN8), Class 2A



·  Plain Finish Coated with Light Protective Oil
·  Right Hand Threads
·  Heat Treated
·  Manufacturer Identification and Grade Marks on All Stocked Studs and Nuts
·  Material Test Reports (MTRs) Available on Demand

Standards

Studs:
Material & Mechanical Properties: ASTM A193 Grade B7
Threads: ASME B1.1, UNC or UN8, Class 2A

Nuts:
Material & Mechanical Properties: ASTM A194 Grade 2H
Dimensions: ASME B18.2.2
